Aluminum Circle/Disc

Aluminum Circle/Disc

Joda aluminum circle is widely used in cooking utensils, kitchenware, utensils, kettles, traffic signs, furniture, lighting, lampshades, interior decoration, refrigerator etc.

Alu alloy: 1 series, 3 series, 5 series and 8 series.

Product Details

Aluminum circle is also called as aluminum disc sheet,which is a perfect material for making aluminum pan, aluminum pot, aluminum rice cooker, aluminum cooking utensils, aluminum pressure cooker etc. Joad main aluminum circle 1 series, 3 series and 5 series. Our aluminum circle with thicknesses between 0.5mm – 5mm and diameter ranging between 100mm  ~ 1500mm, which meet your needs for making aluminum cookware, kitchenware, pots, pans, fryers, cooking utensils, non-stick pan, bowl or cup, kettles, traffic signs, furniture, lighting, lamp shades etc.

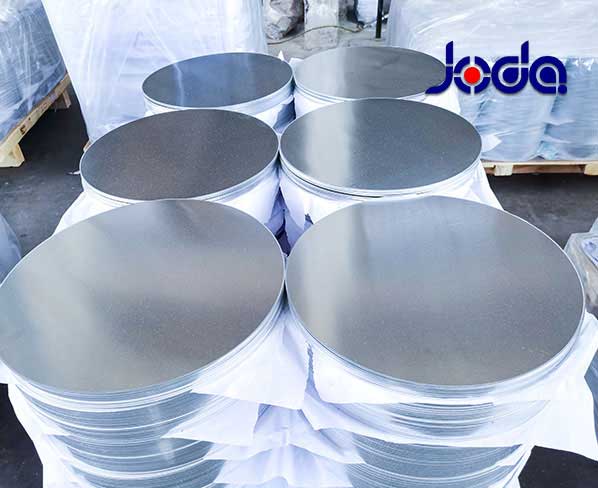

Aluminum Disc



Aluminum Circle/Disc Parameter:

Joda aluminum circle/disc 1050, 1060, 1100, 1200, 3003, 3004, 3105, 5052 etc.
Aluminum Alloy Thickness(mm) Diameter(mm) Temper
1050, 1060, 1100 0.5-5.0 100-1500 O/H12/H14/H18/H22/H24/H32
3003, 3004, 3105 0.5-5.0 100-1500 O/H12/H14/H18/H22/H24/H32
 Material process Cold rolled (CC) / Hot rolled (DC)
DC for cookware with good deep drawing and spinning
Further Fabrication Deep Drawing, Spinning, Anodizing
Customize size We customize the production of aluminum cutting sheet in triangles, hexagons, squares and other shapes according to customer needs.
MOQ 2 tons
Price terms FOB, CRF, CIF, etc.
Payment Terms TT, LC or other
Material Quality Totally free from defects like roll makers, edge damage, oil stain, white rust, dents, scratches, etc. A+++ quality
Application Aluminum cookware, kitchenware, pots, pans, fryers, cooking utensils, non-stick pan, bowl or cup, kettles, traffic signs, furniture, lighting, lamp shades etc.
Packing Standard export worthy wooden pallets, and standard packing is about 1 ton/pallet. Pallet weight also can be as per client’s requirement.
Loading Port Any port of China, Shanghai & Ningbo &Qingdao &Dalian or other.
Container 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) , loading 18-25 tons .
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 20-28 tons.

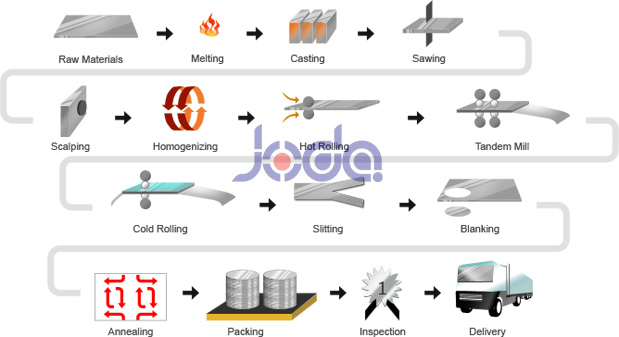

Procedures of Aluminum Circle Production:

Ingot/Master Alloys --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper --- Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery

Procedures of Aluminum Circle Production



Diameter Tolerances

Aluminum Circle Diameter Tolerances Blanked and Sheared aluminum Circle Products
Thickness(mm) Diameter Range (D)(mm)
  D <= 455 455 < D <=1000 1000 < D <=1200
.4 - 6.0 +/-.079 +/-.099 +/-.015
*The maximun dimension may vary according to individual specifications

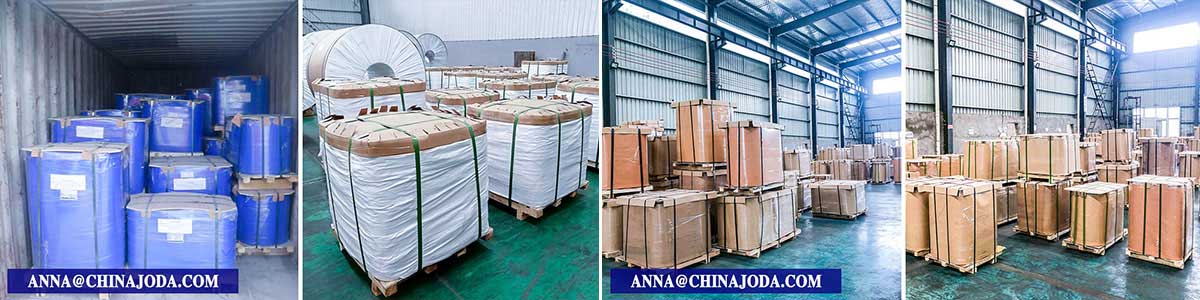

Aluminum Circle/Disc Workshop:

Aluminum Disc

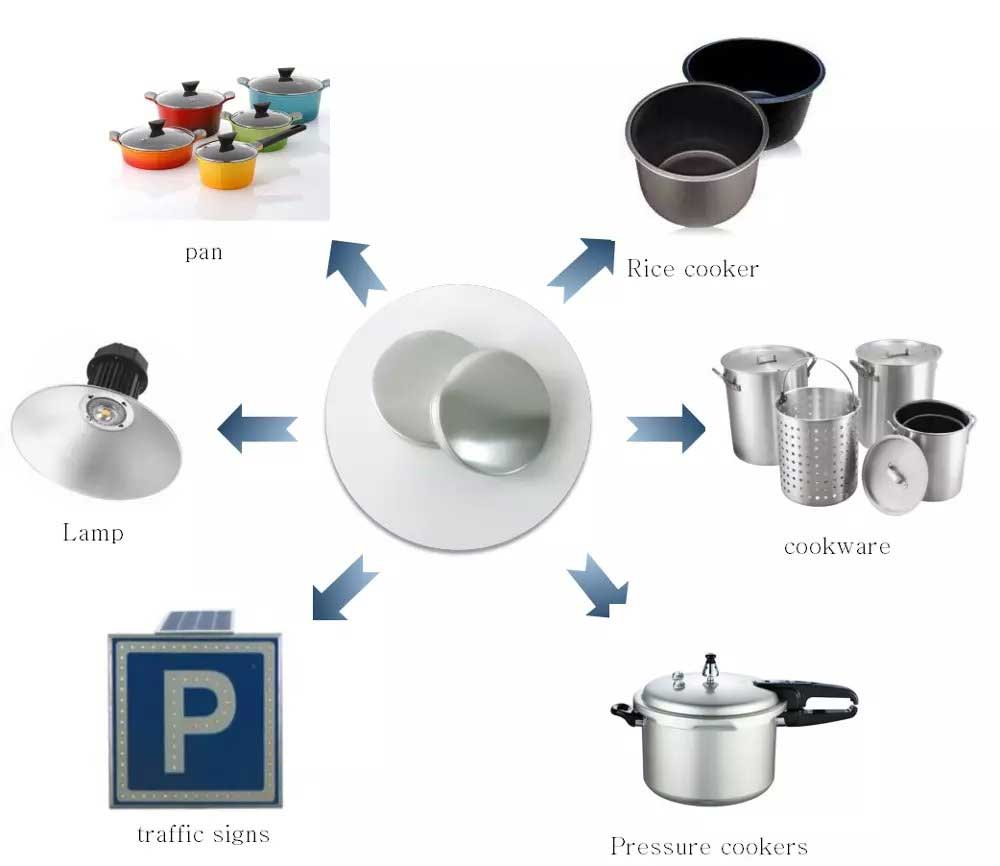

Aluminum Disc Application:

Cookware

Joda has more than 8 years' experience in producing Aluminum Circle for the cookware and small appliance industries. Our product is currently being used to make: stock pots, fry pans, tea kettles, pressure cookers, rice cookers, pizza pans, electric skillets, restaurant cookware, coffee urns, bakeware, steam irons, woks, stainless cookware bottom plates, bread makers

Deep Drawing Quality - Joda's specialty is in deep drawing quality. Grain size is tightly controlled to minimize the "orange peel effect". This is a rough surface, like the surface of an orange peel, which often occurs after deep drawing. Joda tightly controls the chemistry and heat treating to maximize the elongation that allows the materials to stretch more.

Anodizing Quality - Our aluminum circle are commonly used in high quality anodizing cookware. We are good at providing a very consistent anodizing surface.

Heavy Gauge Circle - Joda can produce aluminum circle with thicknesses up to 6mm thick. Such thicknesses are commonly required with commercial quality cookware.

Lighting

Some of the current applications for our aluminum circle products are:recessed lighting , high bay industrial lighting, low bay industrial lighting, street lighting, traffic light reflectors, sports lighting

Aluminum Disc Application

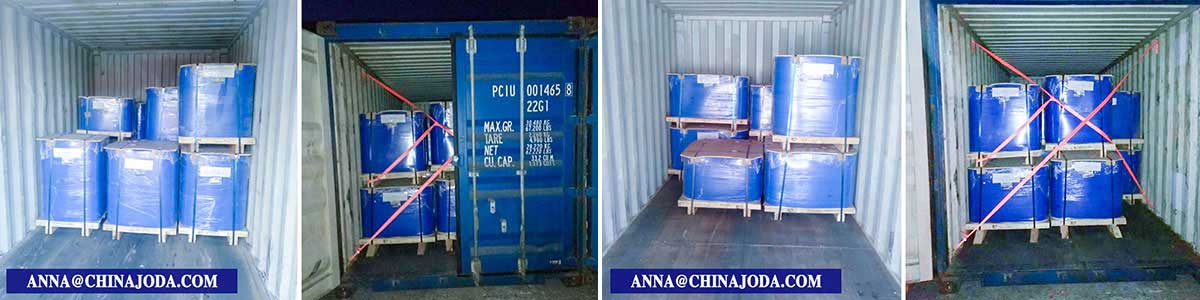

Aluminum Disc Delivery:

Packing: export standard, covering with blue paper and plastic film then packed with wooden case/palletPacking: export standard, covering with blue paper and plastic film then packed with wooden case/pallet such 1-3 tonnes in 1 wooden pallet. Such 18-25 tons in 1x20' container.

Aluminum Disc Delivery

About Joda:

Joda is located in famous aluminum capital of Guangyuan, Sichuan province. We are professional aluminum manufacturer, mainly produces 1xxx series, 3xxx series, 5xxx series, 8xxx series pure aluminum and aluminum alloy circle/sheet/coil products.

Joda is both a aluminum circle manufacturer and supplier. So factory price is available. Besides, we use the finest raw material to improve the product quality, guaranteeing the quality of our aluminum Circle lives to national standards. Joda can manufacture aluminum circle with many tempers, and it can be cut to size at customers' need.



Aluminum Alloy Chemical Properties(WT.%)

Alloy
Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other Min.A1
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 - 0.05 0.03 0.03 99.5
1060 0.25 0.35 0.05 0.03 0.03 - - 0.05 - 0.05 0.03 0.03 99.6
1070 0.25 0.25 0.04 0.03 0.03 - - 0.04 - 0.05 0.03 0.03 99.7
1100 0.95 0.05-0.2 0.05 - - - 0.1 - - - 0.05 99
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - - - 0.15 96.95-96.75

As you can see, these different aluminum circle' size including customized shape and sizecan create a range of different aluminium round metal in different time frames. Some are for very specific purposes while others cover a wider range of round metal cookware needs. If you still have questions about the different aluminum circle' size or for more information, please contact us, Email:anna@chinajoda.com  WhatsApp:+86 13198870652
