5 Series Aluminium Sheet Introduction

5000 series aluminum alloy, also known as Al-Mg alloy, is mixed with magnesium. Characterized by low density, high tensile strength, high elongation and excellent corrosion resistance, it’s weldable and applied to a wide variety of purposes including pressure vessels, automotive, buildings, etc., especially suitable for marine environment.

Its common types include 5005, 5052, 5083, 5754, etc.

5 Series Aluminium Sheet Main Parameter:

5 Series Aluminium Sheet Main Features:

1) High corrosion resistance, good electrical and thermal conductivity, good plasticity and low density;

2) Low strength, but good ductility, formability and weldability;

3) If the 1100 aluminum sheets is anodized, its corrosion resistance and surface can be great.

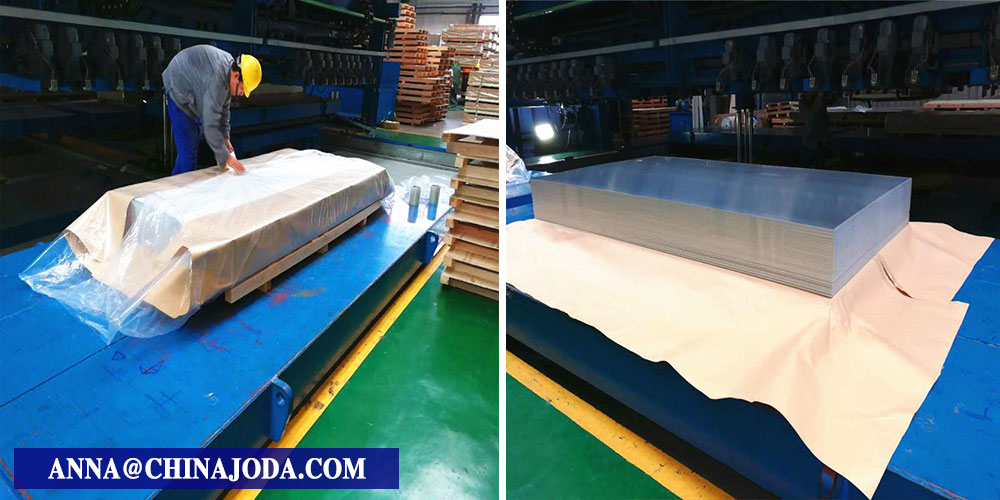

5 Series Aluminium Sheet Delivery：

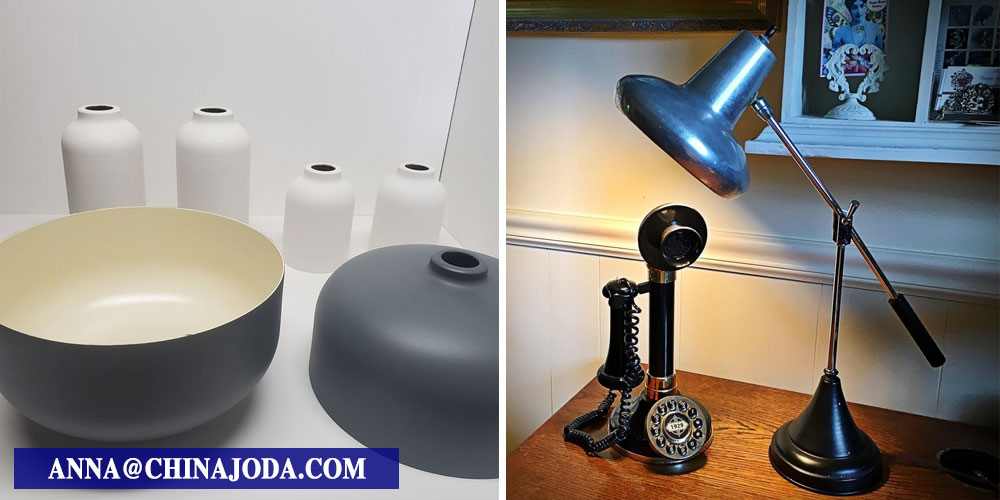

5 Series Aluminium Sheet Main Applications:

5005: Storage tanks, chemical equipment, food processing equipment, roofing & siding materials, etc.

5052: Pressure vessels, treadplate, marine components, chemical equipment, road & name signs, etc.

5754: Ship building, food processing equipment, treadplate, vehicle bodies, fish industry equipment, welded chemical & nuclear structures, etc.

5083: Rail cars, pressure vessels, vehicle bodies, ship building, mine cages & skips, tipper truck bodies, etc.

Supply Forms: 5005/5052/5754/5083 sheet

Aluminum Sheet Prices

As a major aluminum alloy supplier in China, our prices are more competitive. Usually we quote according to the grade (material), temper (or your application), size and order quantity of the aluminum sheet. The minimum order quantity of aluminum plate is about 2-3 tons. In addition, we also provide a real-time quotation service for free.

Remarks：

Material quality:

completely free of defects such as white rust, oil spots, rolling marks, edge damage, radian, dents, holes, broken lines, scratches, etc., no coil set.
