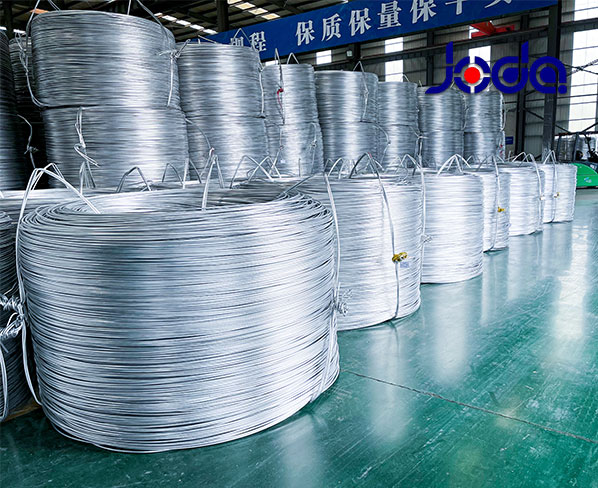

Aluminum Wire
Product Details
Product Overview
EC Grade Aluminum Wire is manufactured from high-purity electrolytic aluminum or aluminum alloy through advanced continuous casting and rolling technology. Designed for superior electrical conductivity and stable mechanical performance, it is widely used as the primary material for aluminum wire drawing, conductor stranding, and tube extrusion.
Our Aluminum Wire products comply with GB/T 3954-2014 standards and are comparable to ASTM B233 requirements, ensuring reliable quality for global cable and electrical industries.
Product Specifications
ParameterSpecification
Alloy Grades1370, 1050, 1060, 1070, 1100, 6101, 6201, 8176, 8030, 8A07
DiameterΦ9.5mm / Φ12mm / Φ15mm
StandardGB/T 3954-2014 (Equivalent to ASTM B233)

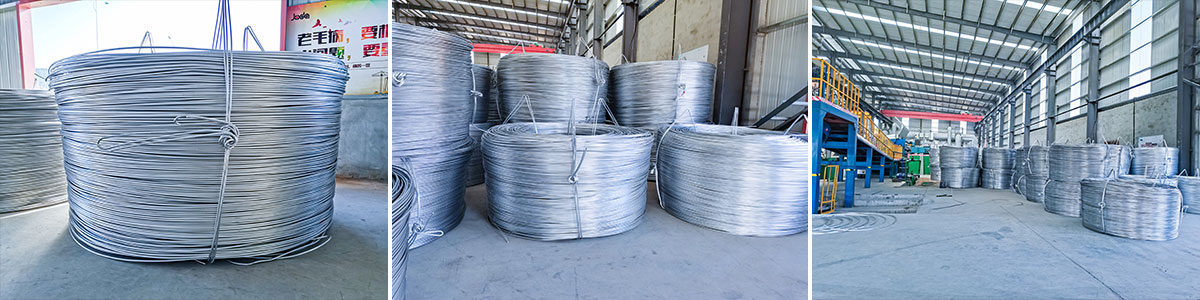

Product FormCoiled Aluminum Wire
Coil WeightCustomizable

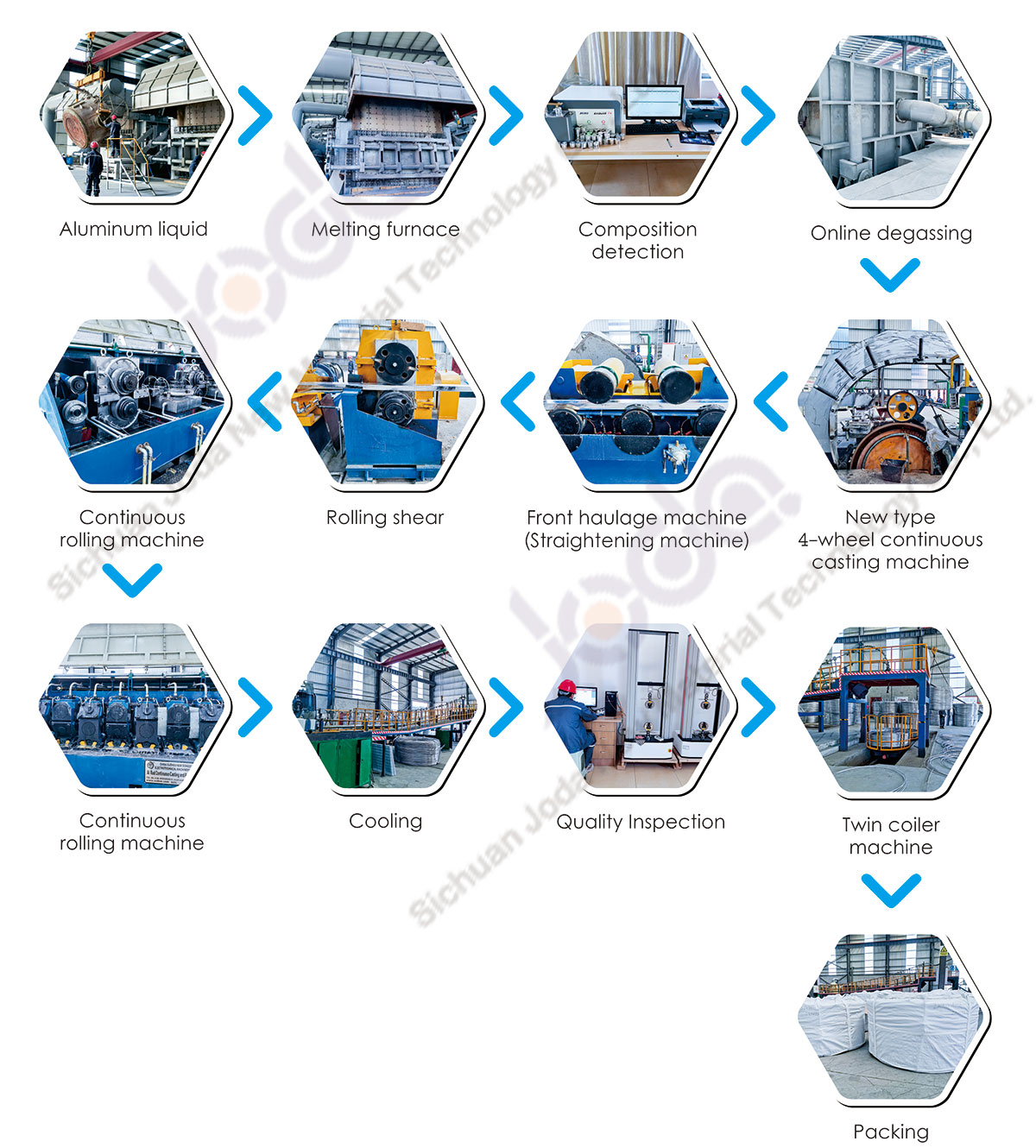

Procedures of Aluminum Wire Production
Typical Properties & Applications
GradeResistivity (nΩ·m)Tensile Strength (MPa)Main Applications
1370<28.0180–135Power cables, electrical conductors
1370 (Cleaned Surface)<28.0180–135Transformer and generator windings
1050 / 1060 / 1070<28.0180–135AC tubing, appliance wiring
1100—95–135Automotive radiator materials
6101<34.50150–200Alloy conductors, busbars
6201<34.50160–220High-strength overhead conductors
8176——General cable conductors
8030——Flexible wind power cables
8A07——Heat-resistant conductors
Mechanical & Electrical Properties (Grade 1370 Example)
TemperTensile Strength (MPa)Elongation (%)Resistivity (nΩ·m)
O (Annealed)60–95≥25≤27.90
H1285–115≥11≤28.01
H14115–150≥6≤28.05
H16130–160≥5≤28.08
Key Advantages
High-Purity Molten Aluminum Supply
Located adjacent to a 500,000-ton electrolytic aluminum plant, we utilize direct molten aluminum sourcing to ensure higher purity, improved conductivity, and cost efficiency.
Advanced Production Technology
Equipped with a modern 4+10 continuous casting and rolling production line, delivering high production capacity, precise dimensional control, and stable product quality.
Professional Manufacturing Experience
More than 10 years of expertise in Aluminum Wire manufacturing and downstream processing applications, supporting customers with reliable technical solutions.
Efficient Logistics & Export Support
Strategically located with convenient highway and waterway transportation access, enabling fast domestic delivery and international shipment.
Main Applications
EC Grade Aluminum Wire is widely used in:
· Power cables
· Overhead transmission conductors
· Transformers
· Reactors
· Generators
· AC aluminum tubing
· Automotive radiators
· Wind power cables
· Heat-resistant alloy conductors
Packaging & Customization
· Export-standard moisture-proof packaging
· Steel or wooden pallet packaging for sea transportation
· Customizable temper: O / H12 / H14 / H16
· Customizable coil weight and cleaned surface treatment
· Sample coils available for trial wire drawing
Why Choose Us
· Stable conductivity and mechanical performance
· Competitive factory-direct pricing
· Strong OEM & customization capability
· Reliable export experience for global markets
· Fast response and technical support
